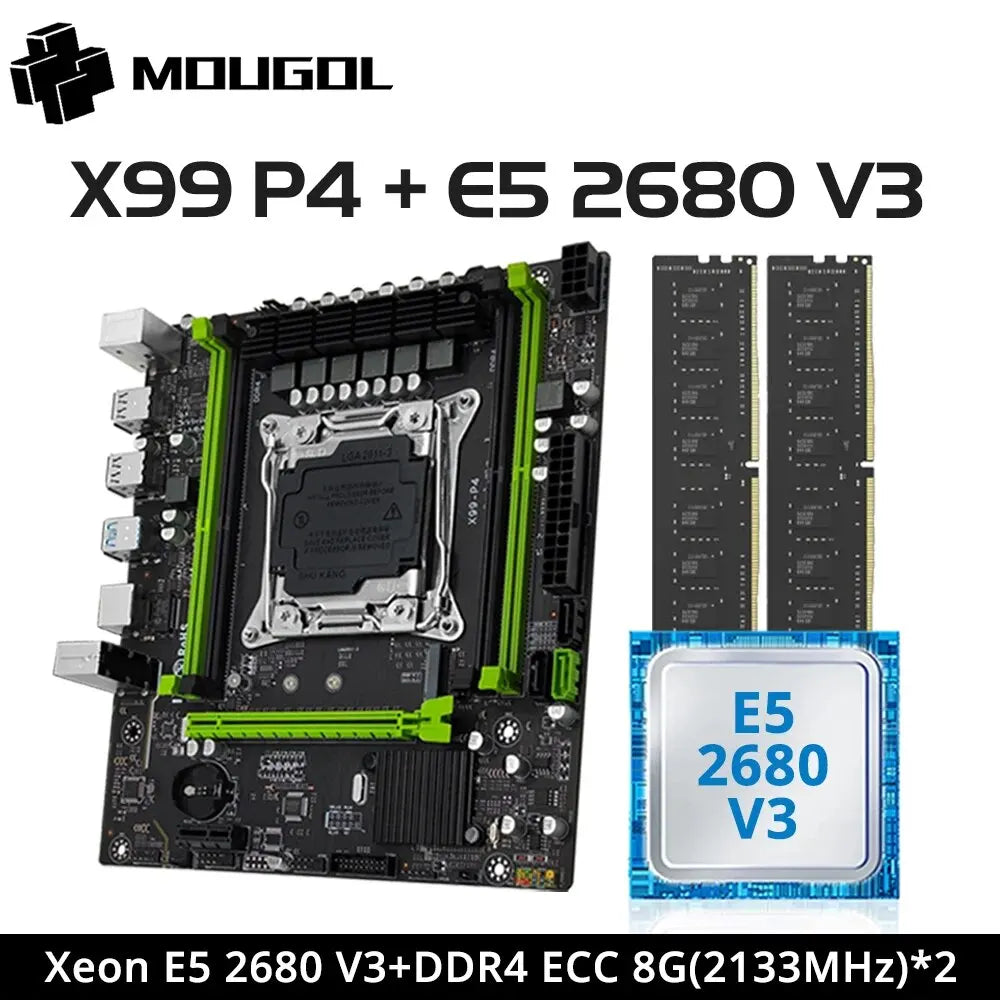

MOUGOL X99 Gaming Motherboard Set with Intel Xeon E5 2680 V3 CPU & Dual Channel DDR4 8Gx2 2133MHz ECC RAM M.2 for Computer Combo

MOUGOL X99 Gaming Motherboard Set with Intel Xeon E5 2680 V3 CPU & Dual Channel DDR4 8Gx2 2133MHz ECC RAM M.2 for Computer Combo

Name: MOUGOL X99 Gaming Motherboard Set with Intel Xeon E5 2680 V3 CPU & Dual Channel DDR4 8Gx2 2133MHz ECC RAM M.2 for Computer Combo
Brand: TECHORATECH
SKU: 200000828:22813972482
Price: 101.99 USD
Availability: InStock

$126.99 $101.99

Shipping calculated at checkout.

Bundle

Motherboard+CPU+RAM

[{"id":43901759979589,"title":"Motherboard+CPU+RAM","option1":"Motherboard+CPU+RAM","option2":null,"option3":null,"sku":"200000828:22813972482","requires_shipping":true,"taxable":false,"featured_image":{"id":38112780615749,"product_id":7812999708741,"position":1,"created_at":"2025-10-27T22:10:31+04:00","updated_at":"2025-10-27T22:10:34+04:00","alt":null,"width":1000,"height":1000,"src":"\/\/techoratec.com\/cdn\/shop\/files\/S270c2887830849b8b02b39c0090cd7c8d.webp?v=1761588634","variant_ids":[43901759979589]},"available":true,"name":"MOUGOL X99 Gaming Motherboard Set with Intel Xeon E5 2680 V3 CPU \u0026 Dual Channel DDR4 8Gx2 2133MHz ECC RAM M.2 for Computer Combo - Motherboard+CPU+RAM","public_title":"Motherboard+CPU+RAM","options":["Motherboard+CPU+RAM"],"price":10199,"weight":941,"compare_at_price":12699,"inventory_management":"dsers-fulfillment-service","barcode":null,"featured_media":{"alt":null,"id":29752401854533,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/techoratec.com\/cdn\/shop\/files\/S270c2887830849b8b02b39c0090cd7c8d.webp?v=1761588634"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

SPECIFICATIONS

Application: Desktop,Server

Back I/O Ports: 3 x Audio Jacks,2x USB 3.2/3.1 Gen 1,4 x USB 2.0

Battery Included: No

Brand Name: SOYO

Certification: FCC,CE

Chipset: C612

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: Intel Xeon E Series

Quality Certification: ce,ROHS

RAID Supported: Yes

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4 ECC

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280,22110

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production,Server,Scientific Computing

With CPU: Yes

• Dual Channel DDR4 8gx2 2133MHz ECC RAM :Enjoy high-speed data transfer with the dual channel DDR4 8gx2 2133MHz ECC RAM, making file transfers and multitasking a breeze.

• Intel Xeon E5 2680 V3 CPU :Experience lightning-fast performance with the Intel Xeon E5 2680 V3 CPU, perfect for heavy-duty tasks like video rendering and virtualization.

• M.2 for Computer Combo :Get the best of both worlds with the M.2 for Computer Combo, which includes a motherboard and CPU in one convenient package.

• PCI-E 3.0 :Take your gaming or workload to the next level with PCI-E 3.0, providing faster data transfer speeds and improved power efficiency.

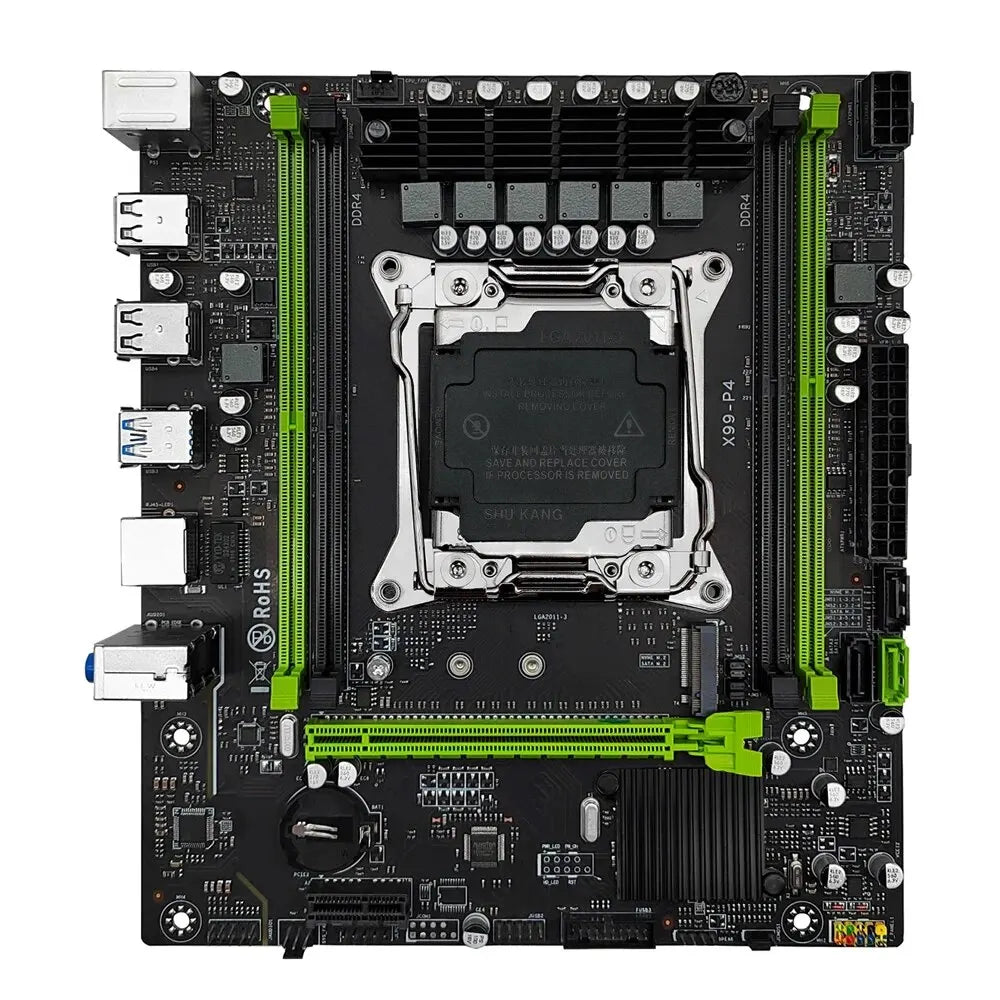

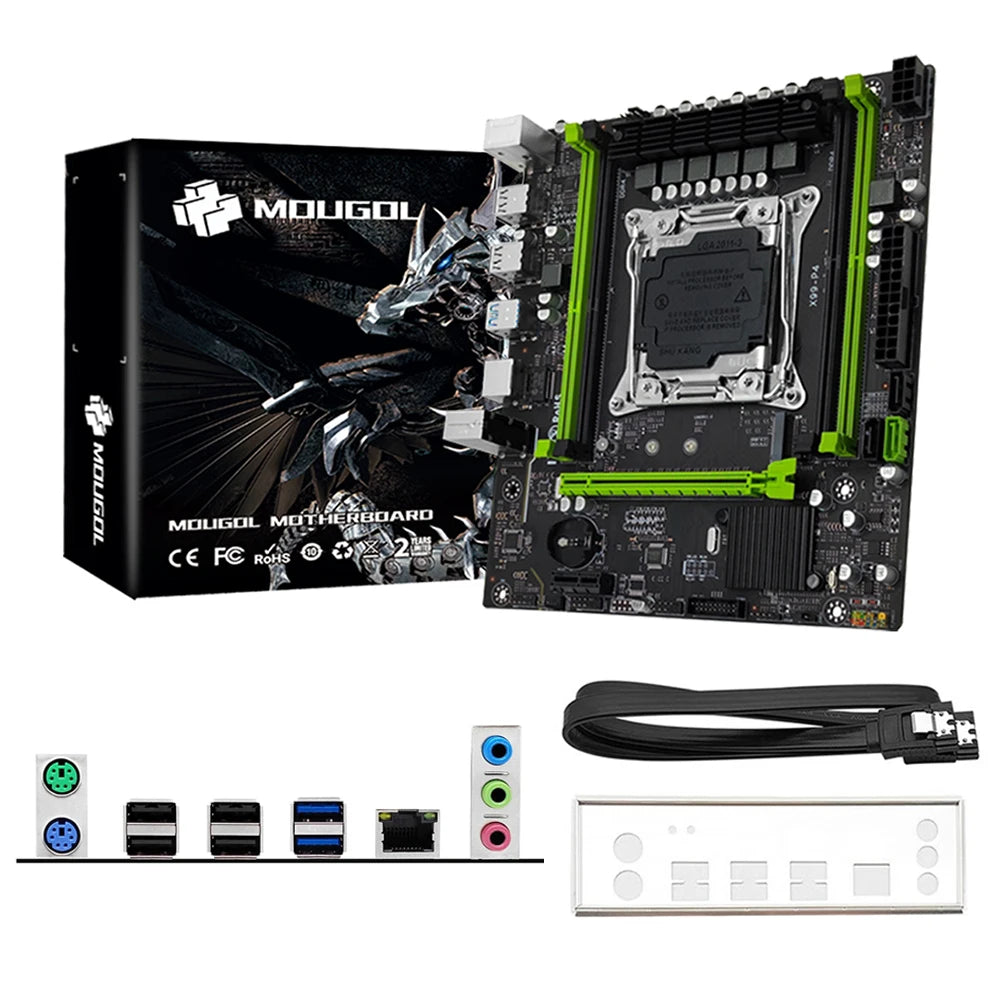

[Motherboard]：MOUGOL X99 P4 motherboard

[CPU]:1 * Intel Xeon E5 2680 V3 CPU

[RAM]：16G=2*DDR4 ECC 8G 2133MHz

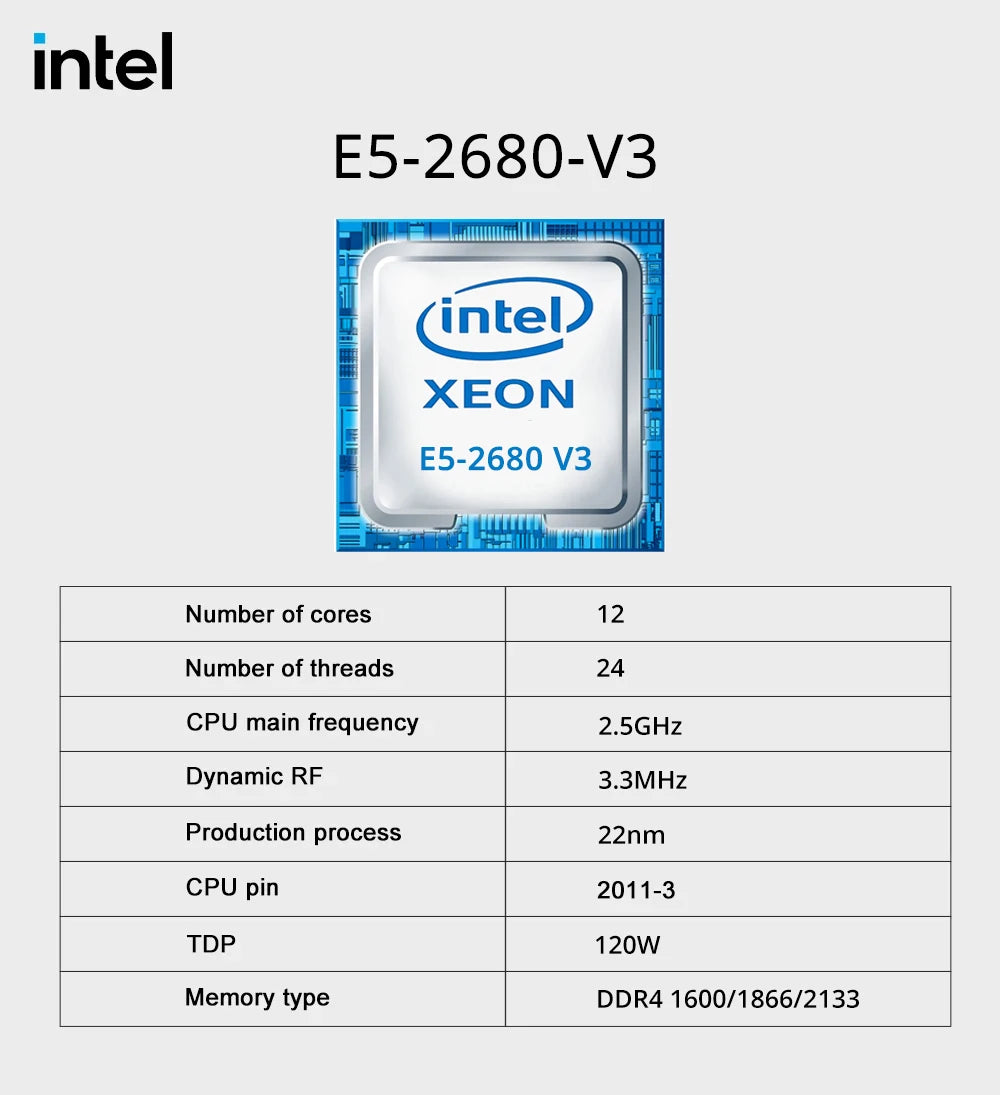

CPU:

Processor Series: Intel Xeon

Model number: E5 2680 V3

Processor Speed: 2.5GHz

Maximum core frequency: 3.3GHz

Processor Socket: LGA2011

Process: 22nm

Memory type: DDR4 1600/1866/2133

The number of CPU cores: 12

The number of threads: 24

L3 cache size (MB): 30 MB

Wattage: 120Watt

cpu will be final double tested before shipping
The CPU is used, please don't buy it if you mind

Specifications:

Ethernet: 1 Realtek Gigabit Ethernet card

Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)

USB Port: 4 USB ports 2 0 interface;

PCIE: 2 (1 PCIE X16, 1 PCIE X1)

USB ports: 4 (one USB port can be connected to two USB 2.0 ports)

Internal connectors

SATA interface: 3 SATA interfaces (1 SATA3 0.2 SATA2.0)

ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket

Audio: 1 2x5PIN pin

Jlpc: 1 2x5pin battery

M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)

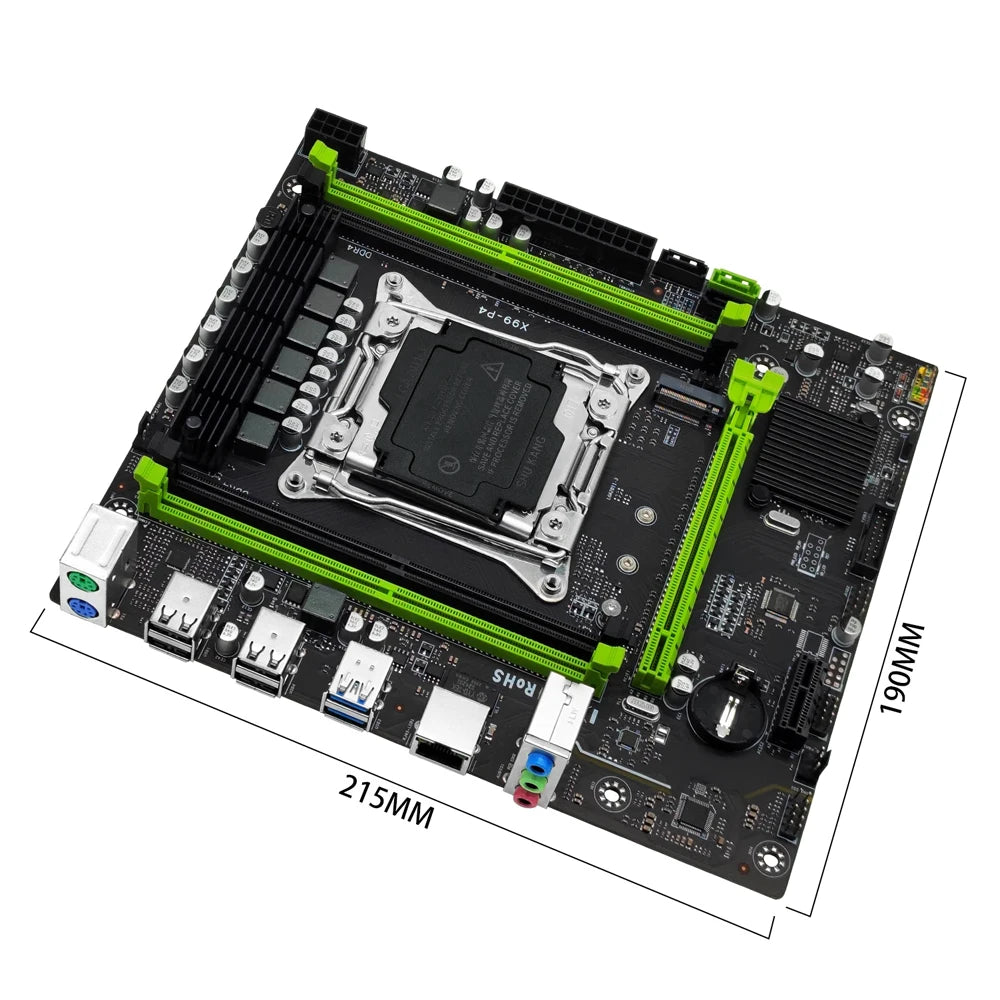

M-ATX【215 x 190】mm

Note:

(1) Please allow 1-3mm differs due to manual measurement.

(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(4) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!

DDR4 Dual channel
